Microtec's Starch Washing Hydro Cyclone is a critical component in achieving high-quality starch production by effectively washing out impurities such as fiber fragments, lipids, proteins, and dissolved substances from the starch slurry. This system employs a multi-stage, counter-current washing process that refines, concentrates, and recovers starch content before final dewatering and drying operations.

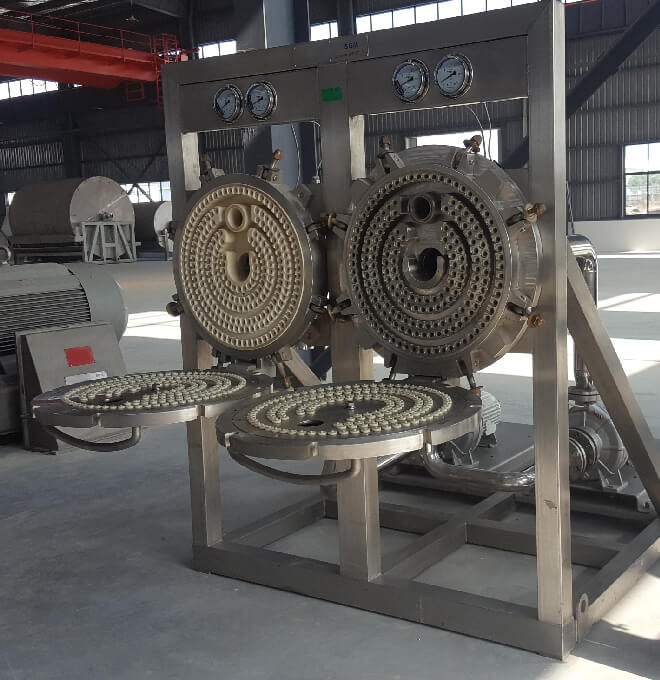

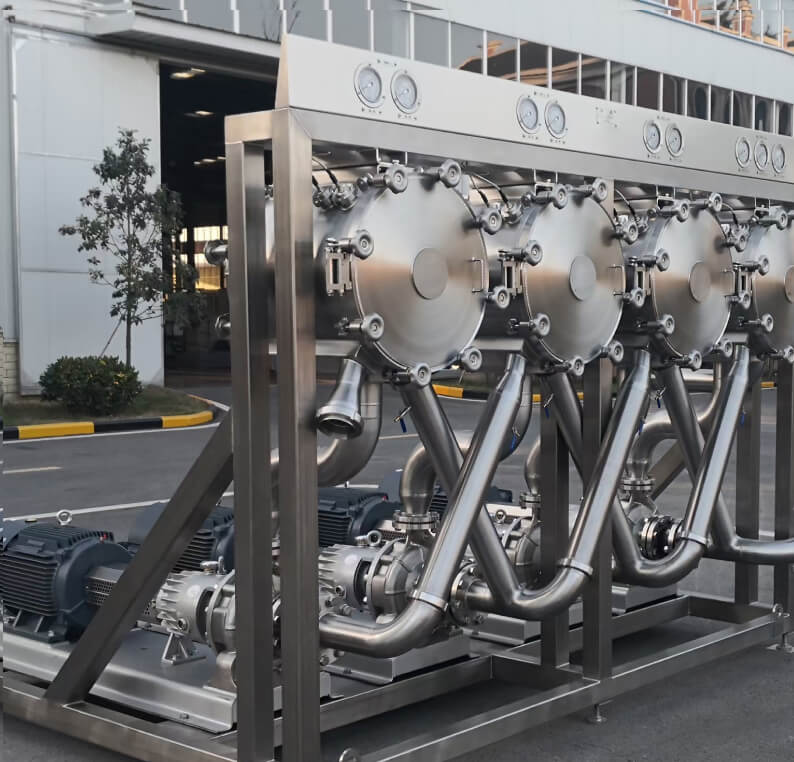

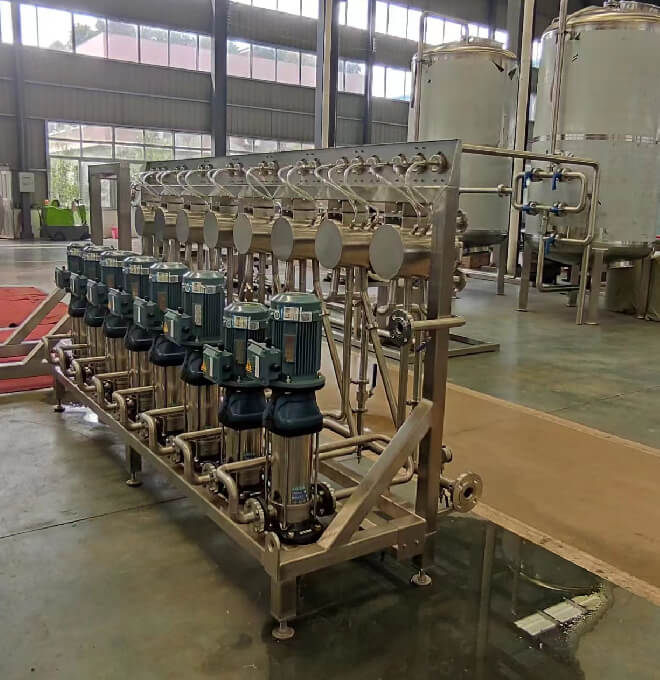

Hydro cyclone system consists of multiple cyclone batteries, each powered by dedicated centrifugal pumps, allowing precise control over the separation and washing processes. By using the counter-current flow principle, the system continuously concentrates and dilutes the starch with fresh water, ensuring maximum removal of contaminants while conserving water usage. The result is a purified, high-quality starch slurry, ready for further processing.
For enhanced durability and hygiene, starch washing hydro cyclone can be constructed entirely from stainless steel 304 or 316L housing, providing superior corrosion resistance and longevity. Additionally, the system can be fully automated by incorporating instruments such as density meters, control valves, and flow meters. This automation enables automatic adjustment of starch concentration, making the operation more efficient and user-friendly.
Available in full stainless steel 304 or with stainless steel 316L housing for enhanced durability and corrosion resistance.
Combines concentration, recovery, and washing processes in one compact unit.
Prevents contamination with food-grade stainless steel components and erosion- and corrosion-resistant nylon cyclonettes.
Integration of density meters, control valves, and flow meters allows for automatic adjustment of starch concentration, simplifying operation.
Meets European safety standards (CE), requiring no additional safety measures.

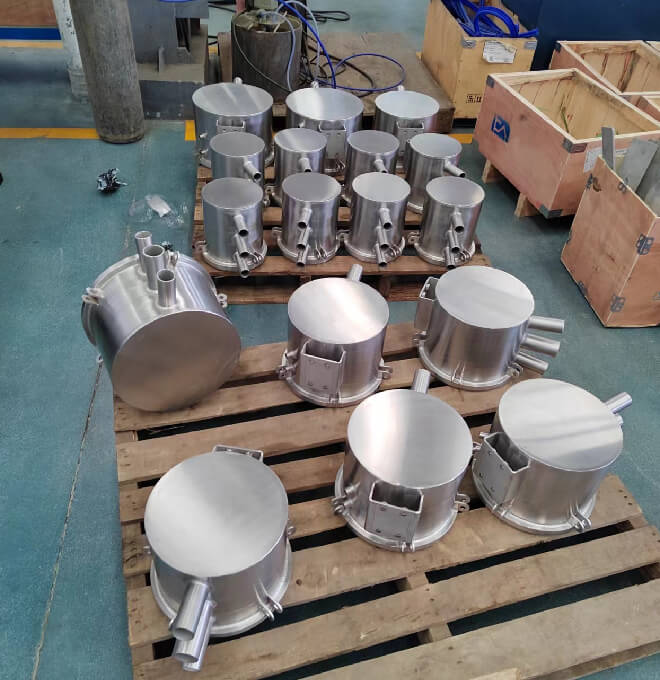

Space-saving design with easy access to low-positioned cyclone housings.
